LARKEN CAMTOOL 24/36

Precision CNC Router

  • Educational
  • Sign Making
  • Wood working
  • 3D Modeling
  • Guitar making
  • Plastics cutting
  • 3D Digitizer Ready
  • Milling of non-ferrous metals

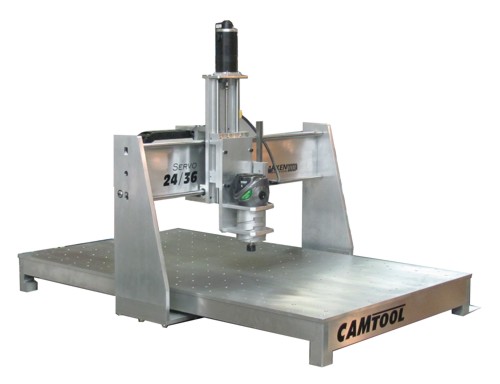

2436



Precision Quality Construction

Precision Linear bearings are on all axes. These recirculating ball bearings are extremely accurate and rugged and guarantee very accurate reliable positioning and excellent cut quality.
The table and frame are made of solid aluminum plate and bar that has been precision machined. We don't use hollow aluminum extrusions like other xyz tables.

2436 Enclosure

Optional Safety Enclosure

A Profitable Investment

The possibilities for profit and new products are limited only by your imagination. The Camtool can be used for so many different types of jobs it can pay for itself in a very short time.

 The Camtool can be used to Route, Engrave, 3D mill or plot all types of materials including plastic, acrylic, MDF, wood, composites, brass and aluminium. A  2 hp router  variable speed Bosch router is standard with an optional precision floating spindle.

The choice of Guitar makers

stratneck

With the Camtool you can easily do complex jobs that you would have previously thought too difficult or time consuming, such as inlaying metal into wood or cutting out elaborate graphic shapes .

The Camtool 24/36 comes standard with a 2 Hp Bosch Variable Speed Router with optional  3hp Italian Spindle

All systems come complete and ready to run with StarCNC software, 3 axis controller, dust pickup ,and hold-down clamps



Our StarCNC USB Windows controller is one of the easiest to use controller out there. It is compatible with all Cam programs like Fusion 360, Mastercam Vcarve pro, Aspire, RhinoCam..etc.

Teachers like its simple control screen and easy position operation, compared to old style controllers only based on G and M codes.



CAMTOOL 24/36 Specifications

XYZ travel 24.5" x 36.5" x 8"
Z Clearance 8.5" clearance under gantry
XYZ Resolution 0.0005"
Repeatability + - 0.001"
Spindle type 2 Hp Bosch or Hitachi variable speed router (std)
Maximum cutting speed 150 in/min
Control type Micro-Step Stepper motor 150 oz/in ( Optional 3 axis closed loop)
Table Material Aluminum drilled and tapped plate (.375")
T-Slot option .Machined 1/2" x 2" Solid aluminum bar
Shipping weight 210 Lb (100KG)
XYZ table top space 30" x 50"
Power required 120 volt 15 amps
Computer required 32 or 64 bit Windows XP, 7, 10



Camtool 24/36 Options

Safety Enclosure with Interlock (optional stand)
3 Hp Teknomotor router with Inverter Drive unit (220 V)
Plotter-Pen/Knife holder
3D digitizer probe Attachment
Tool Touch sensor
Closed loop Stepper 3 axis controller
