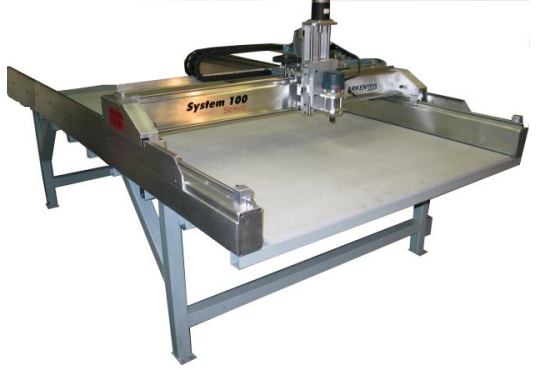

LARKEN System 100 /120 CNC Router

  • Sign Routing
  • WoodWorking
  • Plastic cutting
  • 3D Modeling
  • Educational Applications
  • 10" or  20"  Z axis stroke
  • StarCam Windows Controller
  • Option SERVO Motors
  • 3D Digitizer ready
  • 480 in/min feed rate
  • Removeable Table up to 24" high work piece
  • Vacuum Table Optional
  • 7.5 Hp Colombo optional

The System 100/120 comes standard with a 2 Hp Bosch Variable Speed Router, with optional 3Hp PorterCable or 7.5HP Colombo high frequency spindle

System 100 : 50" x 100" cutting area with a 6" Z axis clearance and 10" Z stroke

System 120 : 62" x 122" cutting area with a 6" Z axis clearance and 10" Z stroke

System 150 : 76" x 146" cutting area with a 6" Z axis clearance and 10" Z stroke

Prices start under $19995 ($Can)

All systems come ready to run with StarCam software, 3 axis controller, dust pickup ,hold-down clamps and spindle

Precision Quality Construction

Precision Thompson Linear bearings are on all axes. These recirculating ball bearings are extremely accurate and rugged. They guarantee very accurate reliable positioning and excellent cut quality. The hardened rails are bolted to the frame all along their length.

The System 100 uses heavy custom aluminum extrusion for the side beams and gantry It has thompson linear bearings and rails on X ,Y and Z axes. Zero-backlash Rack/Pinion drive allows high cuting speeds .Powerful 650 oz/in Pacific Scientific XY stepper motors provide superior speed and cutting power. Optional 3 axis Servo motors are available

A Profitable Investment

The possibilities for profit and new products are limited only by your imagination. The System 100 can be used for so many different types of jobs it can pay for itself in a very short time.

 The System 100 can be used to Route, Engrave, 3D mill or plot all types of materials including plastic, acrylic, MDF, wood, composites, brass and aluminium. A 2 hp variable speed Boschrouter is standard with an optional 2hp or 7.5 Hp precision high frequency spindles for heavier cutting. This machine has the power to push a 7.5Hp to its limit.

With the 20" z axis option the System 100 is ideal for making very large 3d molds and models out of modeling materials such as wood foam, plastic etc. It also has a removable center table section to allow parts up to 24" high to be machined.

Perfect for Complex Graphics

With the System 100 you can easily do complex jobs that you would have previously thought too difficult or time consuming, such as inlaying metal into wood or cutting out elaborate graphic shapes .

Advanced contouring at cutting speeds up to 240 in/min lets you cut complex graphics with curves and arcs smoothly and accurately. With its computer controlled 6" z axis clearance and 10" stroke , the System 100 can cut thick materials such as wood or foam board using the multi-pass mode. With our StarCam for Windows controller software you can specify maximum depth per pass, whether or not you require a finish pass, cutting speed and finish pass speed. Our Starcam is the easiest to use CNC controller in the industry !

 The System 100 can engrave tiny letters smaller than .050" or cut signs 50" wide by any length in long sign mode.

System 100 /120 Specifications

XY travel 50" x 100" x 10" (System 120, 62" x 122 x 10")
Z travel 10" standard, optional 20"
Z Clearance 6"  also Standard Removeable table center for work pieces up to 24" high
Table Width 64" ( 76" for System120 )
Table Length 120" ( 144" for System 120 )
XYZ Resolution 0.0005"
Repeatability + - 0.002" , machined straight gantry for accurate squareness
Spindle type 2 Hp Bosch 1617EVS router (std), 3Hp Portercable or 5Hp Elte spindles optional
Maximum cutting speed 240 in/min stepper (600 in/min servo)
Rapid Taverse speed 300 in/min (800 in/min servo)
Control type Windows StarCam 3 axis, controller MicroStep Stepper motor ( Optional DC servo motor) 100 blocks / second Gcode feedrate for fast cutting
Table Material Steel cross members , with high quality plywood table, Vacuum table optional (Removeable table for 26" of clearance)
Shipping weight 1200 Lb ( 1500 lb for system120 )
Power requirer 120 volt 15 amps (optional 220V 50 Hz)
Computer required Pentium II 400  minimum

System 100 / 120 Options

3 Axis DC Servo motor upgrade
3Hp PorterCable 5 Spd, 120V
Vacuum Table 6 zone.
7.5Hp Colombo router with Drive unit (ER25 collet)  220Volt
Plotter-Pen/Knife holder
Vinyl cutting knife w/blade
3D digitizer probe attachment
Cut 2d, Vcarve Pro , Surfer 3d toolpath software



3D Digitizer Probe
2HP Bosch Variable Speed router
